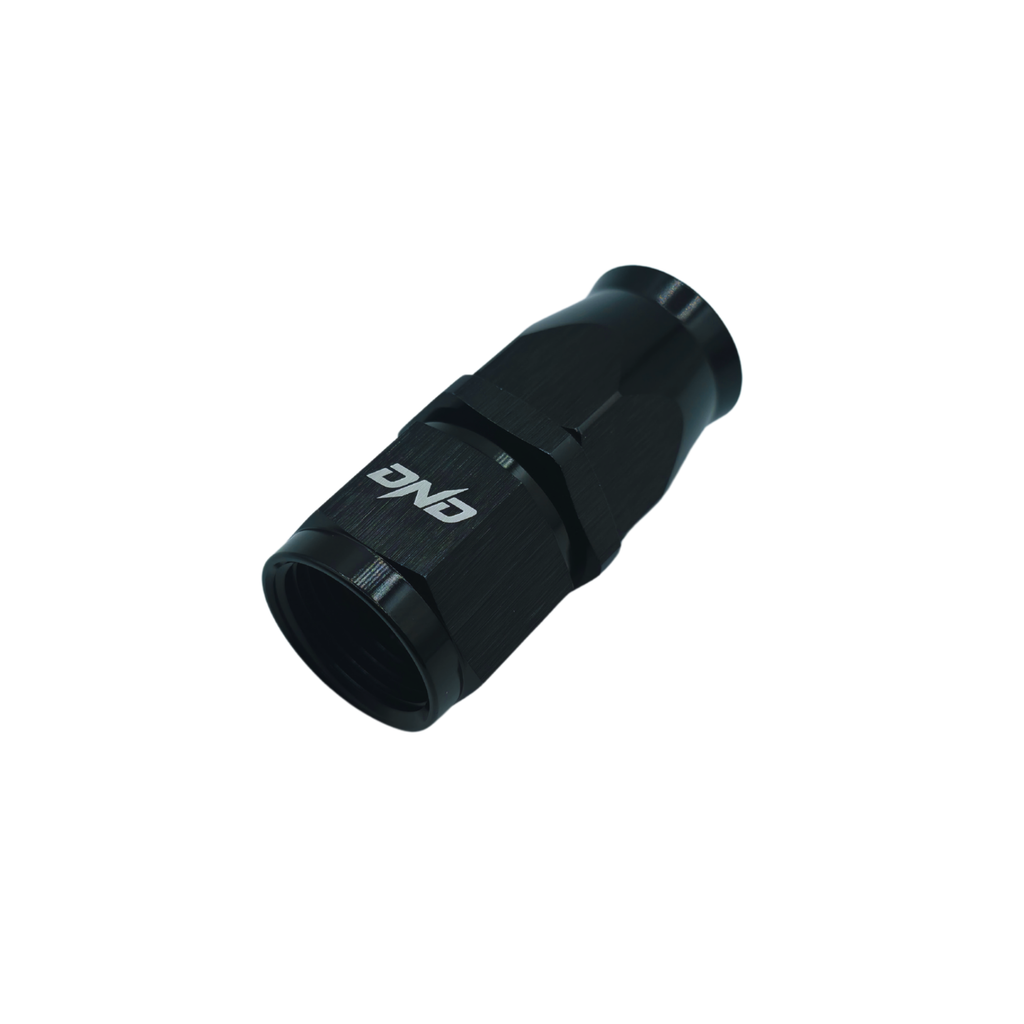

PTFE Full Flow Fittings
Full flow AN fittings with a PTFE-compatible design for high-performance and race builds. Engineered for zero permeation and maximum chemical resistance across a wide temperature range.
Features
-
Extreme temperature range: Rated –65°C to +260°C (–85°F to +500°F)
-
Superior chemical resistance: Compatible with petrol, E85, methanol, oils, brake fluid, and power-steering fluid
-
Zero fuel smell: PTFE liner is essentially impermeable — no bleed-through odour
-
Full flow bore: Maximises fluid delivery with minimal restriction
-
Reusable fittings: Screw-on design for rebuild and reuse
Specifications
- Material: PTFE inner liner with stainless braid
- Temperature rating: –65°C to +260°C
- Compatible fluids: Petrol, E85, methanol, diesel, oils, brake fluid, power-steering fluid
- Sizes: 6AN, 8AN, 10AN

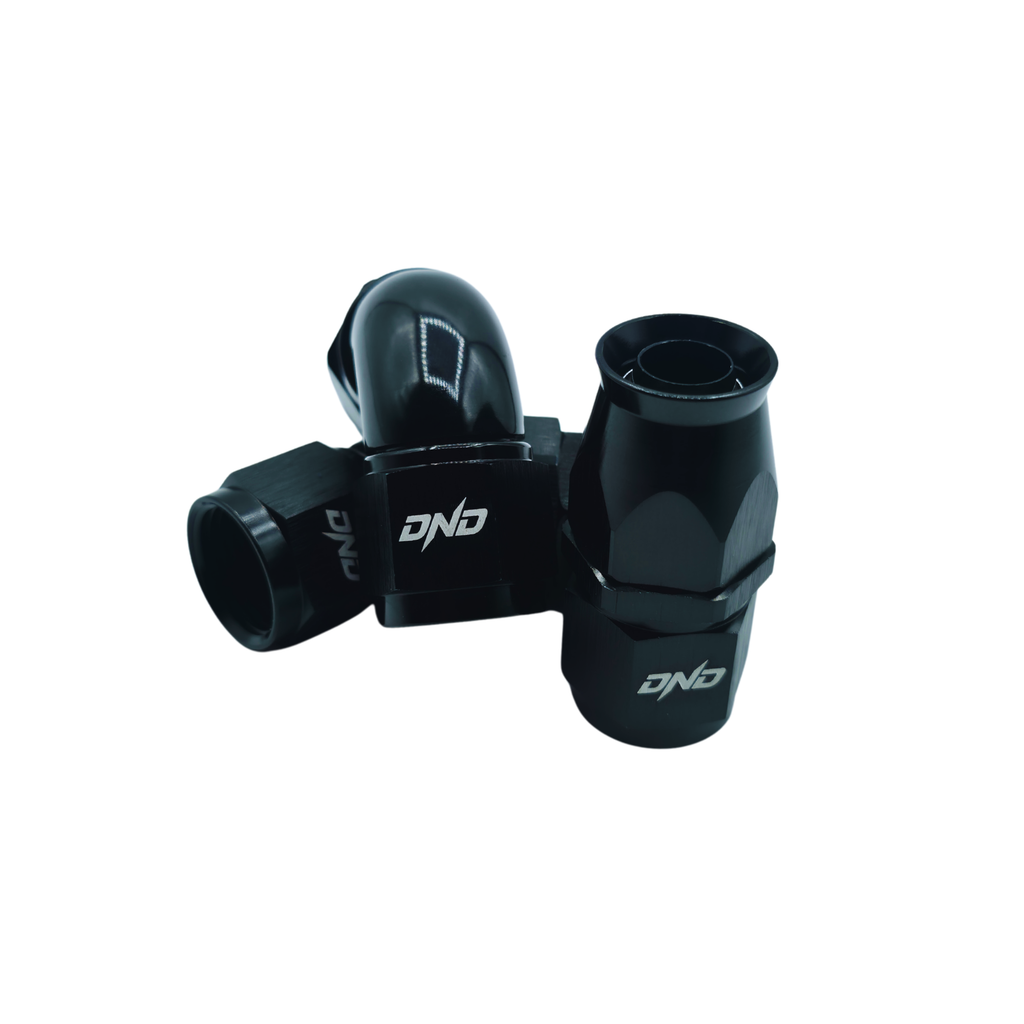

- Angles: Straight, 45°, 90°
- Fittings: Reusable screw-on
CPE vs PTFE
PTFE is the right choice for E85, methanol, extreme temperatures, or any application where zero permeation and long service life matter. For street builds with standard fuels, see our CPE Quick Connect Fittings.
